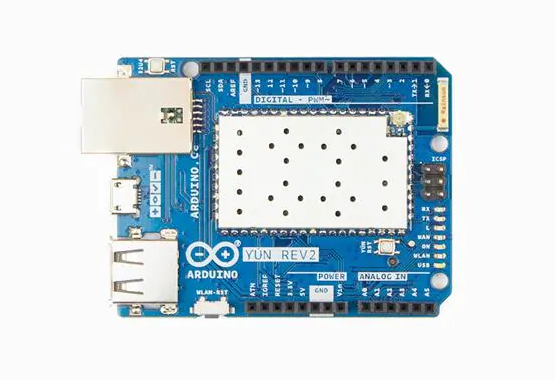

Arduino Yún Rev 2 is a Microcontroller Board based on the Microchip Technology ATmega32U4 8-bit Microcontroller and the Qualcomm Atheros AR9331 Processor. The Atheros Processor supports a Linux distribution based on OpenWrt named LininoOS. The board has built-in 802.3 10/100Mbit/s Ethernet and Wi-Fi® 802.11b/g/n 2.4GHz, making it ideal for connected IoT (Internet of Things) applications. Connection to a Wi-Fi or wired network is simple thanks to the YÚN Web Panel and the dedicated ''YunFirstConfig'' sketch. Using the Yún Web Panel it is also possible to configure all the shield-related features and remotely upload sketches on the board connected to the shield. The Yún Rev 2 uses the Bridge library, extending the functionalities of the Microprocessor by using the computational power of the Linux processor on the board.
The Yún Rev 2 offers a space saving hoizontal Micro USB port and full USB 2.0 host, and a low-profile Ethernet 10/100 RJ45 port, designed to avoid potential short circuits when used with shields. Additional features include a microSD card slot, 20 digital input/output pins (7 of which can be used as PWM outputs and 12 as analog inputs), a 16MHz crystal oscillator, an ICSP header, 4 on-board status LEDs, and 3 reset buttons.
The hardware, software, and documentation of the Yún Rev 2 is freely available and open-source. This means that developers can learn exactly how it's made and use its design as the starting point for their own projects.
Microcontroller: Microchip Technology ATmega32U4
Operating Voltage: 5V
Input Voltage: 5V
Digital I/O Pins: 20
PWM Output: 7
Analog I/O Pins: 12
DC Current per I/O Pin: 40mA on I/O Pins; 50mA on 3,3 Pin
Flash Memory: 32KB (4KB used by bootloader)
SRAM: 2.5KB
EEPROM: 1KB
Clock Speed: 16MHz
Processor: Qualcomm Atheros AR9331
Architecture: MIPS
Operating Voltage: 3.3V
Ethernet: 802.3 10/100Mbit/s
Wi-Fi: 802.11b/g/n 2.4GHz
Card Reader: MicroSD
RAM: 64MB DDR2
Flash Memory: 16MB
Clock Speed: 400MHz
LininoOS
Software stack updated to OpenWRT latest version, including all patches
SSL support on the bridge Arduino / Linux bridge
LEDs
ON (green): indicates that the shield is properly powered
WLAN (blue): indicates a connection to a wireless network
WAN (red): indicates connection to ethernet
USB (white) : indicates system activity and/or if a USB key is mounted
Board dimensions: 73mm x 53mm
ABX00020 制造商: Arduino
产品种类: 网络开发工具
产品: Development Boards
类型: LoT System
工具用于评估: Atheros AR9331
数据速率: 10 Mb/s, 100 Mb/s
工作电源电压: 3.3 V, 5 V
商标: Arduino
接口类型: Serial
CNHTS: 8543909000
HTS Code: 8542310001
产品类型: Networking Development Tools
工厂包装数量: 50
子类别: Development Tools
